Axis Mounts Covert Bumper Diode Dynamics Lighting System for Ford 21-24 Gen3 Raptor
Covertly and conveniently light up the night with this multi-configuration light bracket proudly designed and manufactured in the USA!
This rugged and reliable mounting system allows you to customize your Raptor lighting for any application. Locating lights in the center bumper opening not only keeps them safe from prying eyes, but also allows you to adequately illuminate near AND far lighting zones of the truck. Maximize your visibility with up to five 3” pods situated cleanly in the OEM lower bumper opening. Required to run a front plate? No problem as a single pair fits perfectly on either side. There are many ways to attach lights on the front of our trucks, but none are more versatile, provide a clean factory look, and mount this easily.
Features

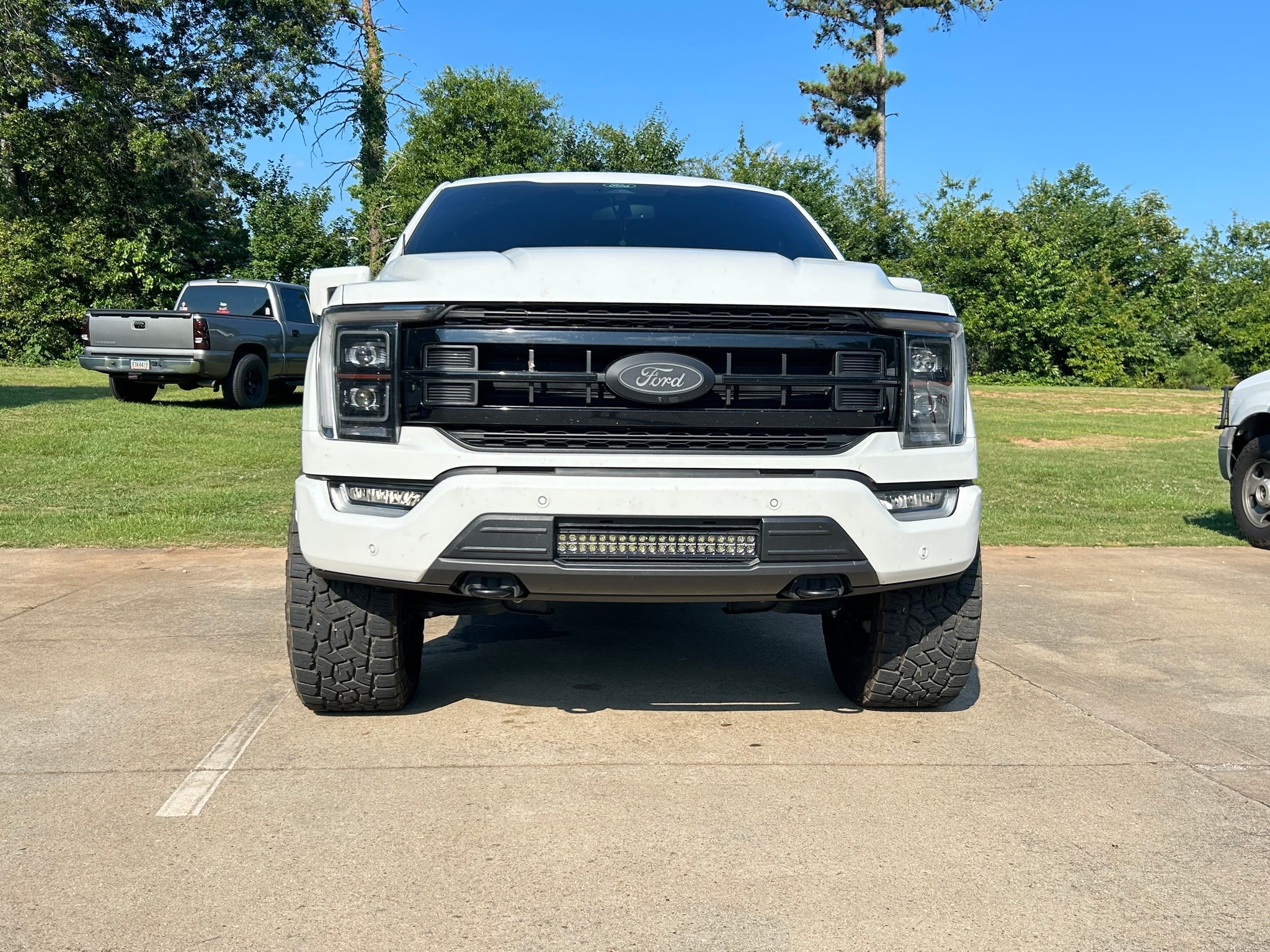

● Multi-Configuration Design: easily mount two to five 3” pods and/or one 20" light bar in multiple orientations, giving you the freedom to arrange different beam patterns and brightness levels to meet your specific needs.
● Sturdy and Dependable: constructed from high-strength 3/16" steel, this bracket is built to last the lifetime of your vehicle and keeps your lights securely mounted using the heavy duty grade 8 bumper bolts.
● Easy Bolt-On Installation: simple installation with minimal tools required, allows you to effortlessly add lighting.
Lighting Options Details: Call for Custom Selection

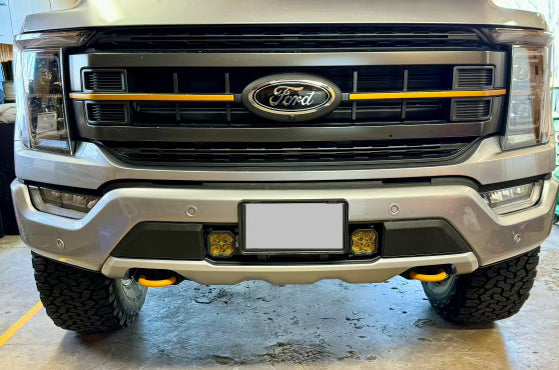

2 Lights- Choose between a clear or amber Diode Dynamics SS3 Fog Pattern in the sport or pro brightness level. We’ve found these are the perfect spread and brightness level for those needing modest levels of illumination at night. If you're required to run a front plate, this is a great way to quickly add more light while retaining your factory fogs. Amber lights are optimal for dust, rain, snow, fog or any other low visibility conditions as they will not glare back at you like clear lights will.
Two Lights-Sport/Pro-White:
- 1 x SS3 SAE/DOT Fog White Sport/Pro (pair)
- 1 x Heavy Duty Dual Output 4-pin Wiring Harness
Two Lights-Sport/Pro-Yellow:
- 1 x SS3 SAE Fog Yellow Sport/Pro (pair)
- 1 x Heavy Duty Dual Output 4-pin Wiring Harness

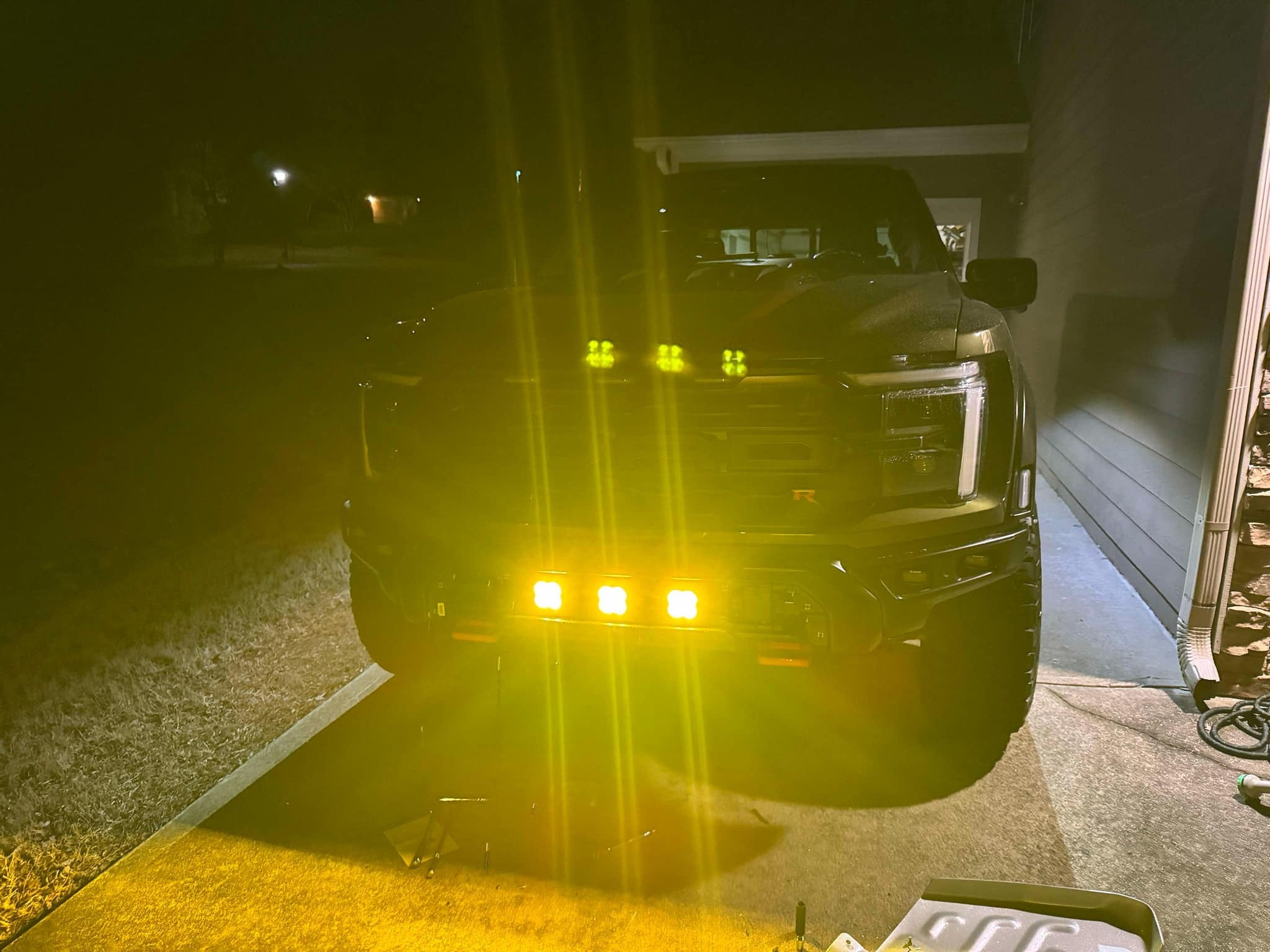

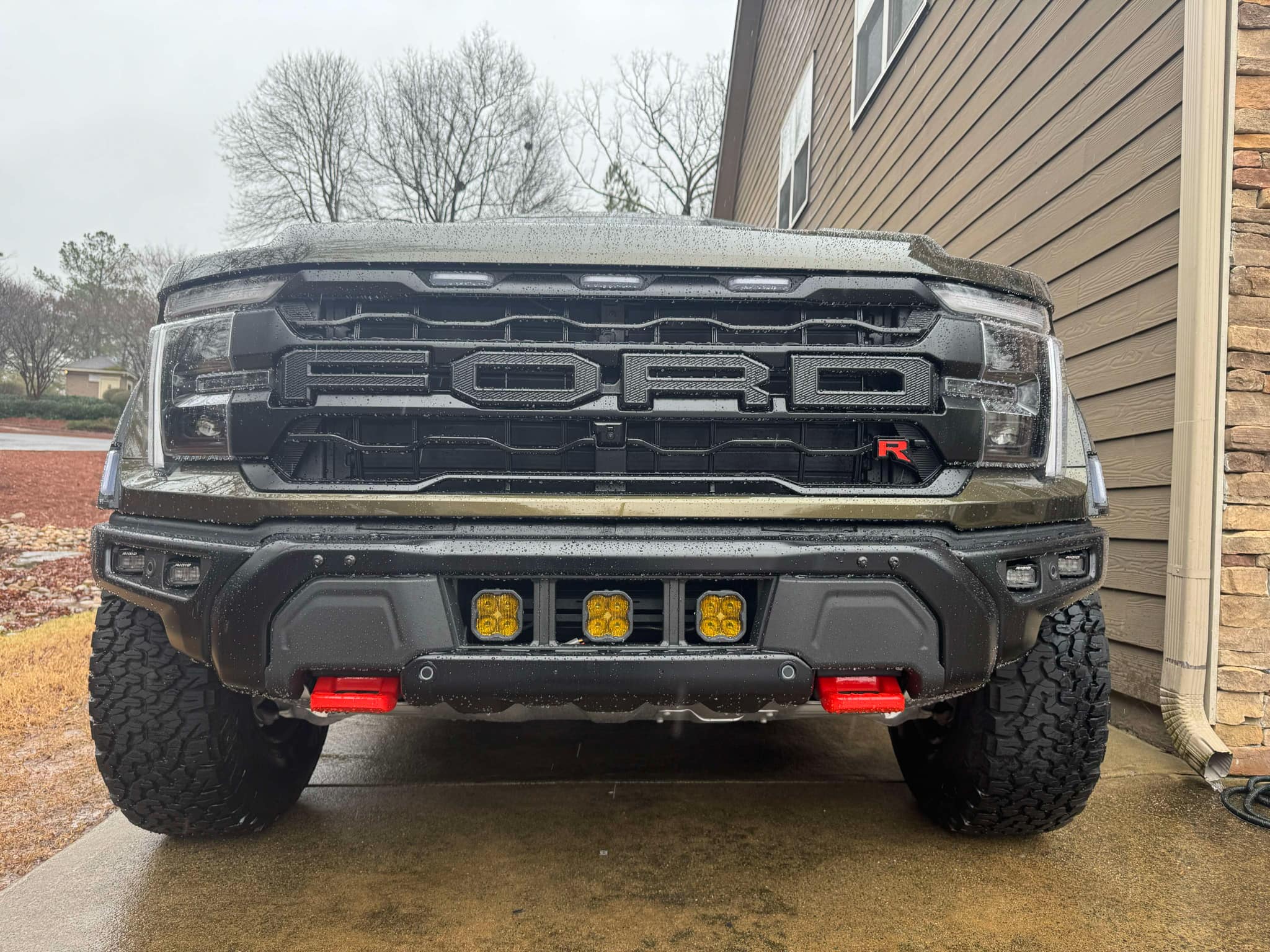

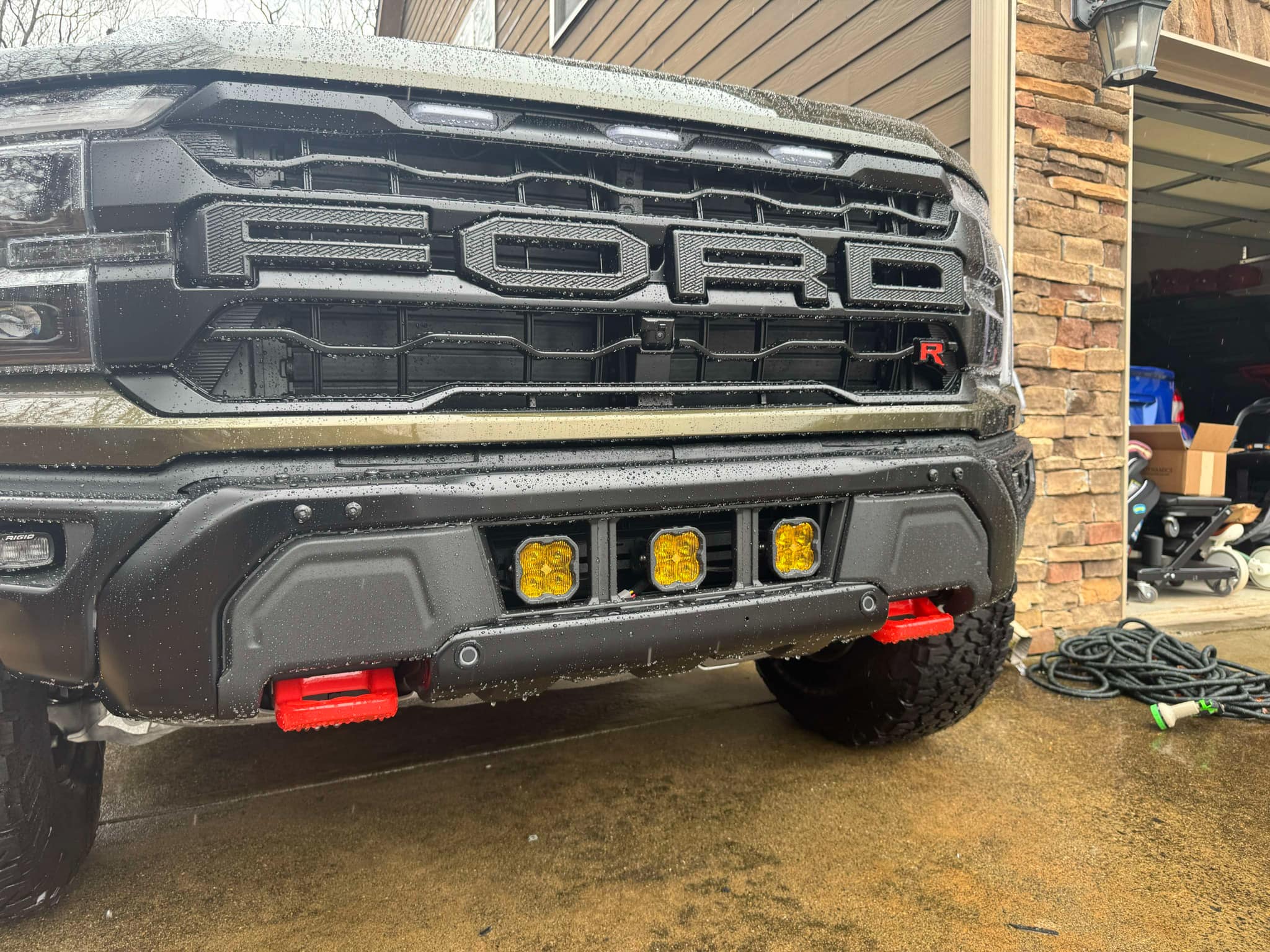

3 Lights- Is your F-150 equipped with the modular bumper? This option fits 3 lights perfectly centered inside the 3 center bumper openings. Choose between all white, all yellow Diode Dynamics SS3 Sports or a combination of both. Yellow lights are optimal for dust, rain, snow, fog or any other low visibility conditions as they will not glare back at you like clear lights will.
Three Lights-Sport/Pro-White:
- 1 x SS3 SAE/DOT White Sport/Pro Fog (pair)
- 1x SS3 SAE/DOT White Sport/Pro Driving (single)
- 1 x Heavy Duty Single Output 4-pin Harness
- 2x Y-Splitters
Three Lights-Sport/Pro-Yellow:
- 1 x SS3 SAE Fog Yellow Sport/Pro (pair)
- 1 x SS3 SAE Driving Yellow Sport/Pro (single)
- 1 x Heavy Duty Dual Output 4-pin Wiring Harness
- 2 x Y-Splitters
Three Lights-Sport/Pro-Combo:
- 1 x SS3 SAE/DOT Fog Yellow Sport/Pro (pair)
- 1 x SS3 SAE/DOT Driving White Sport/Pro (single)
- 1 x Heavy Duty Dual Output 4-pin Wiring Harness
- 2 x Y-Splitters

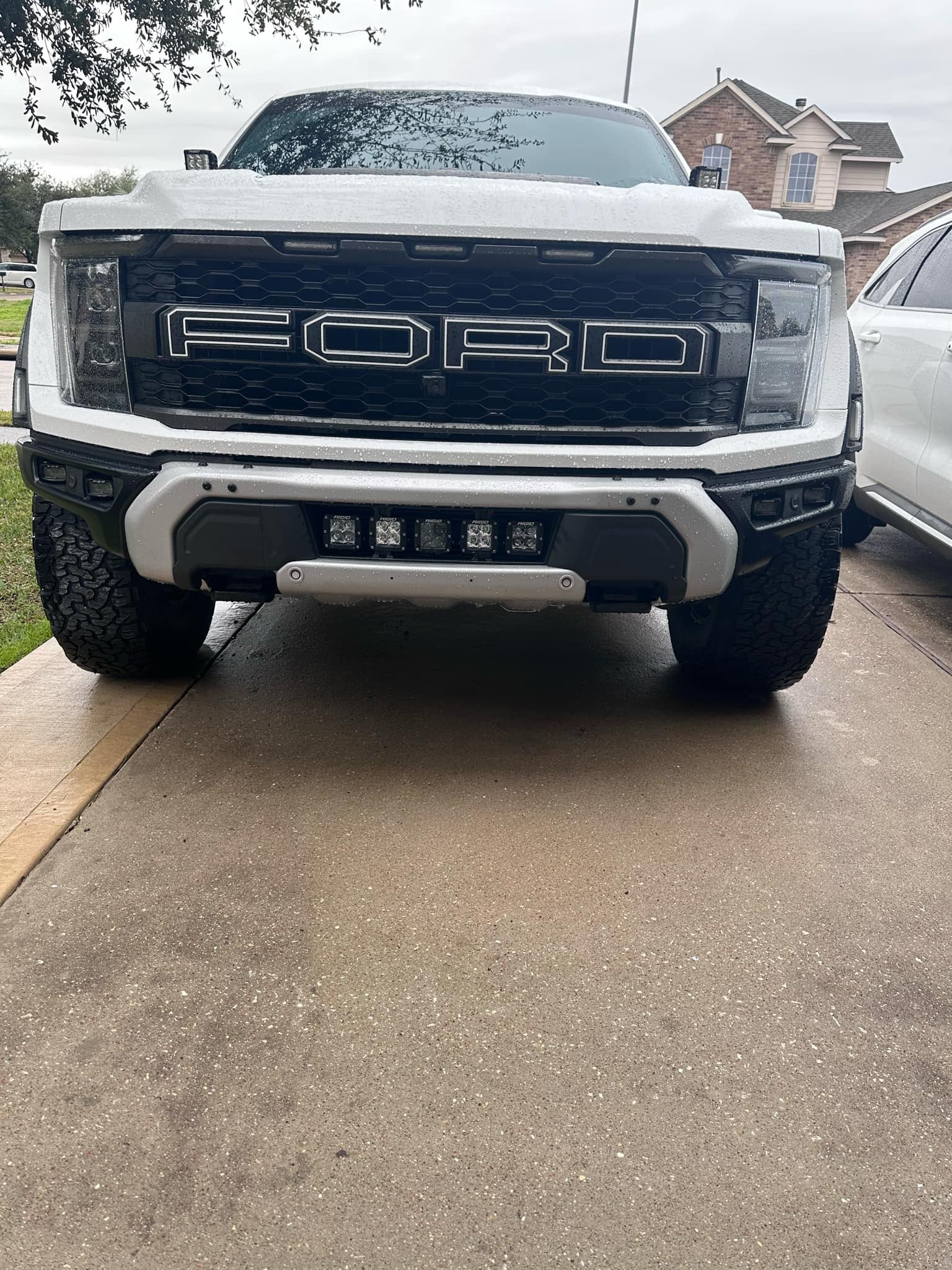

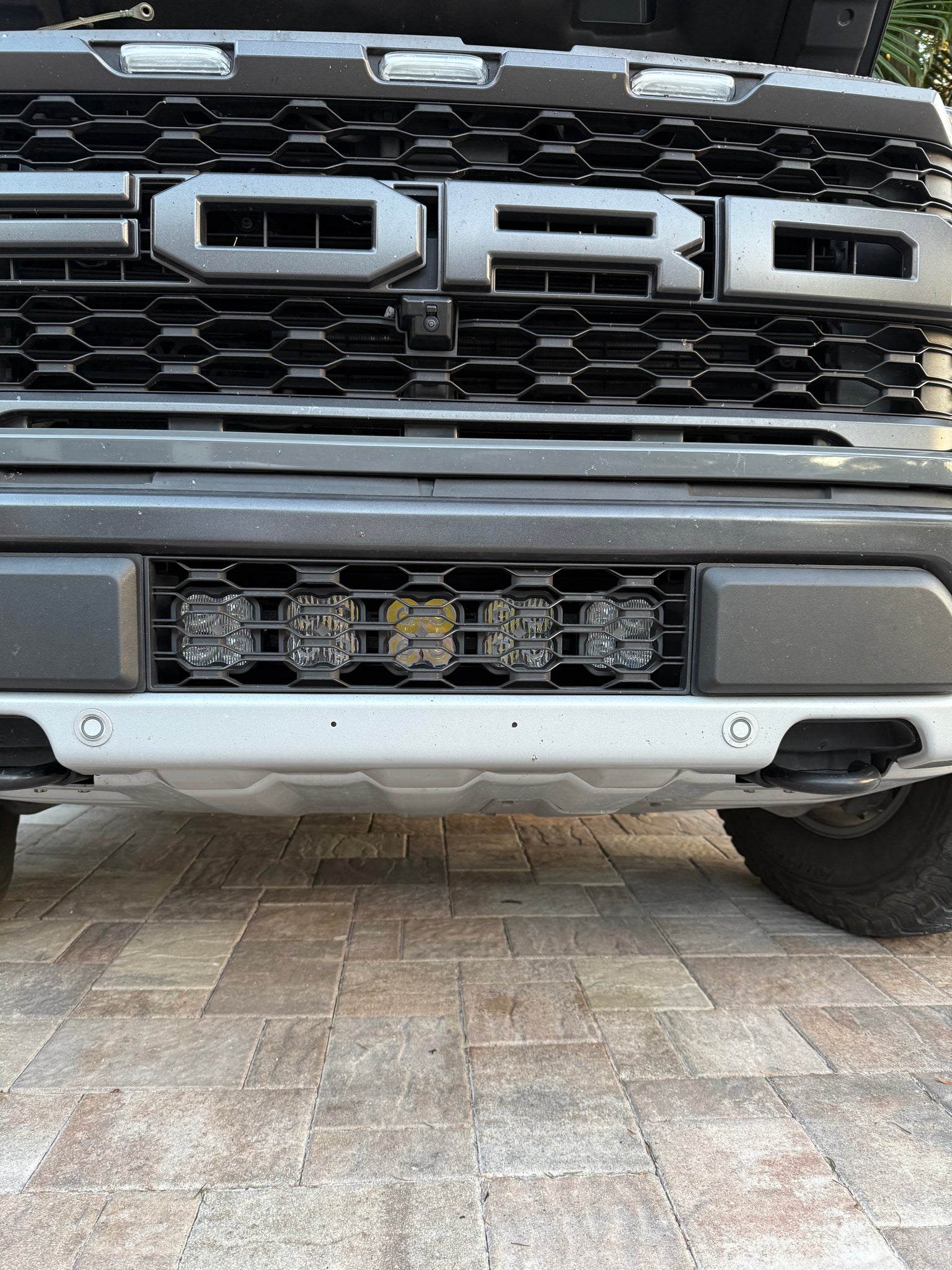

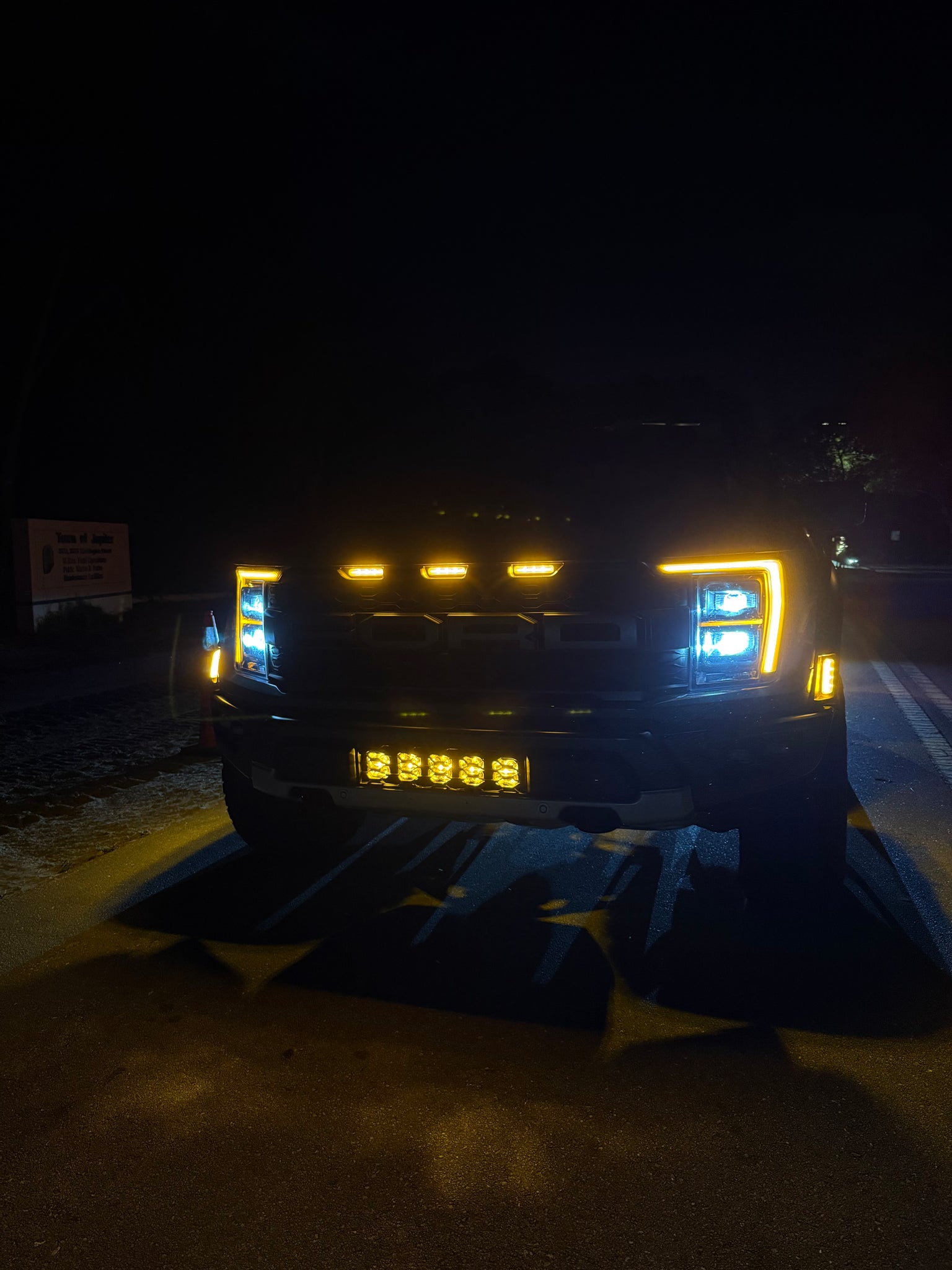

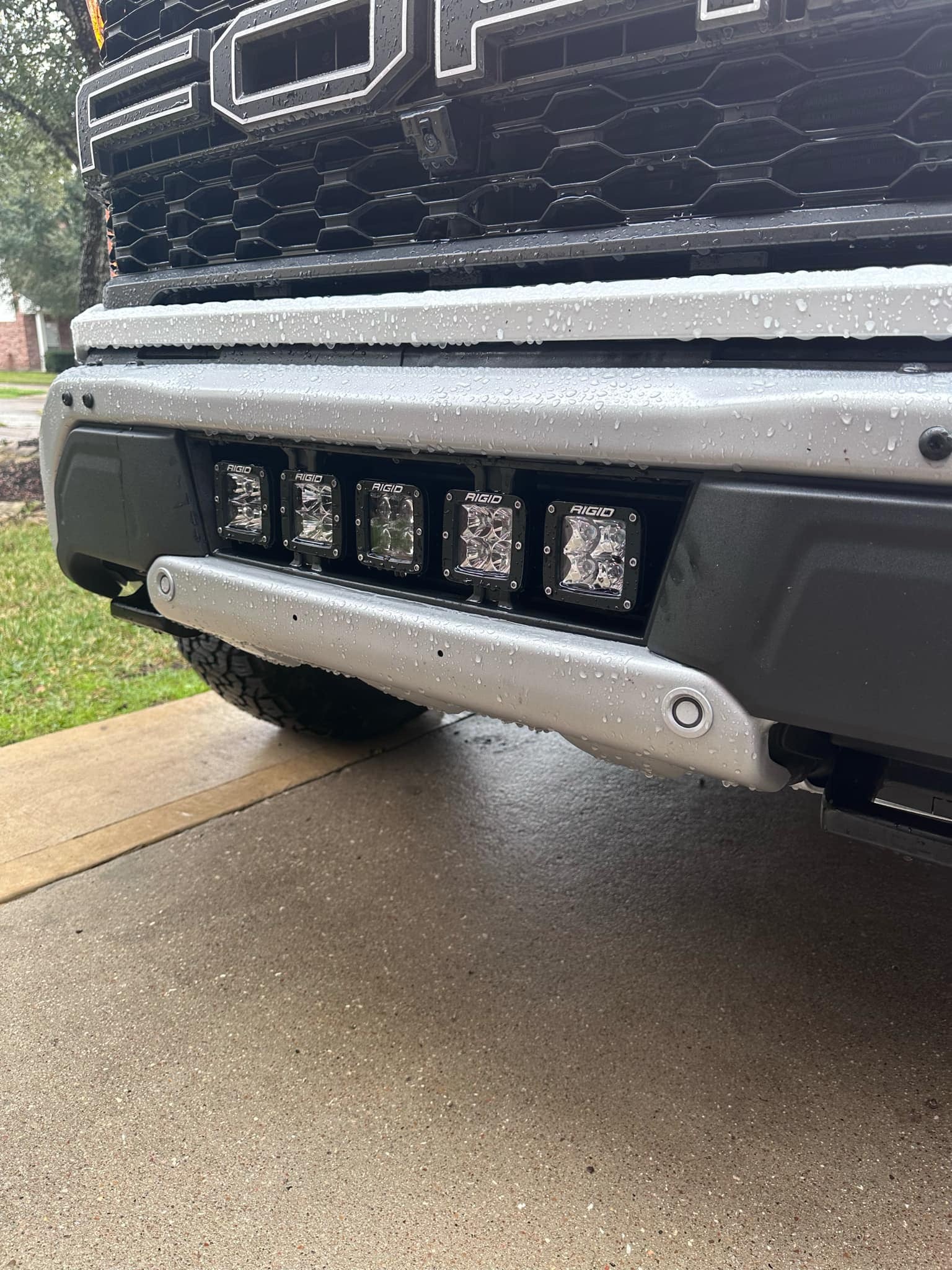

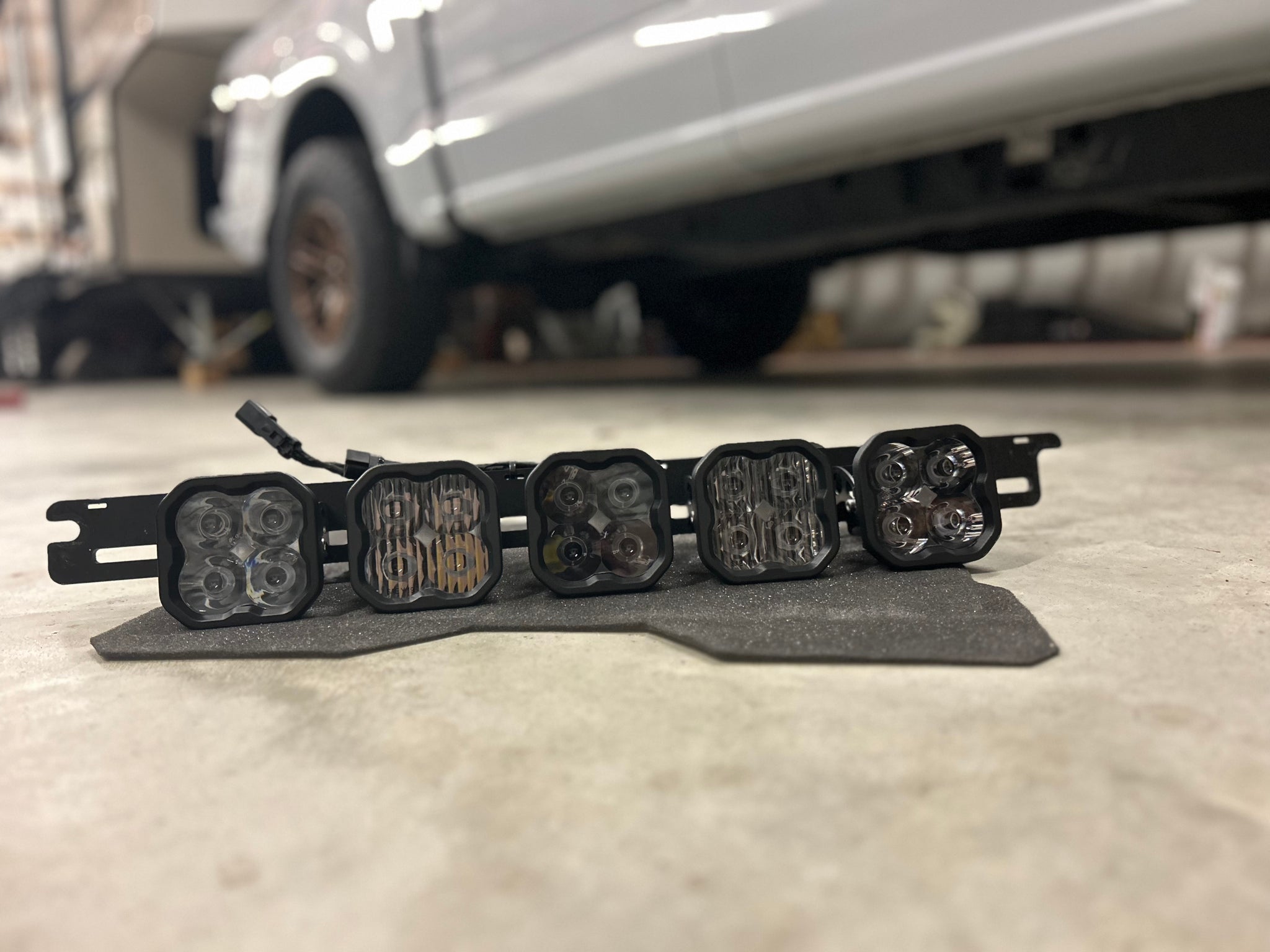

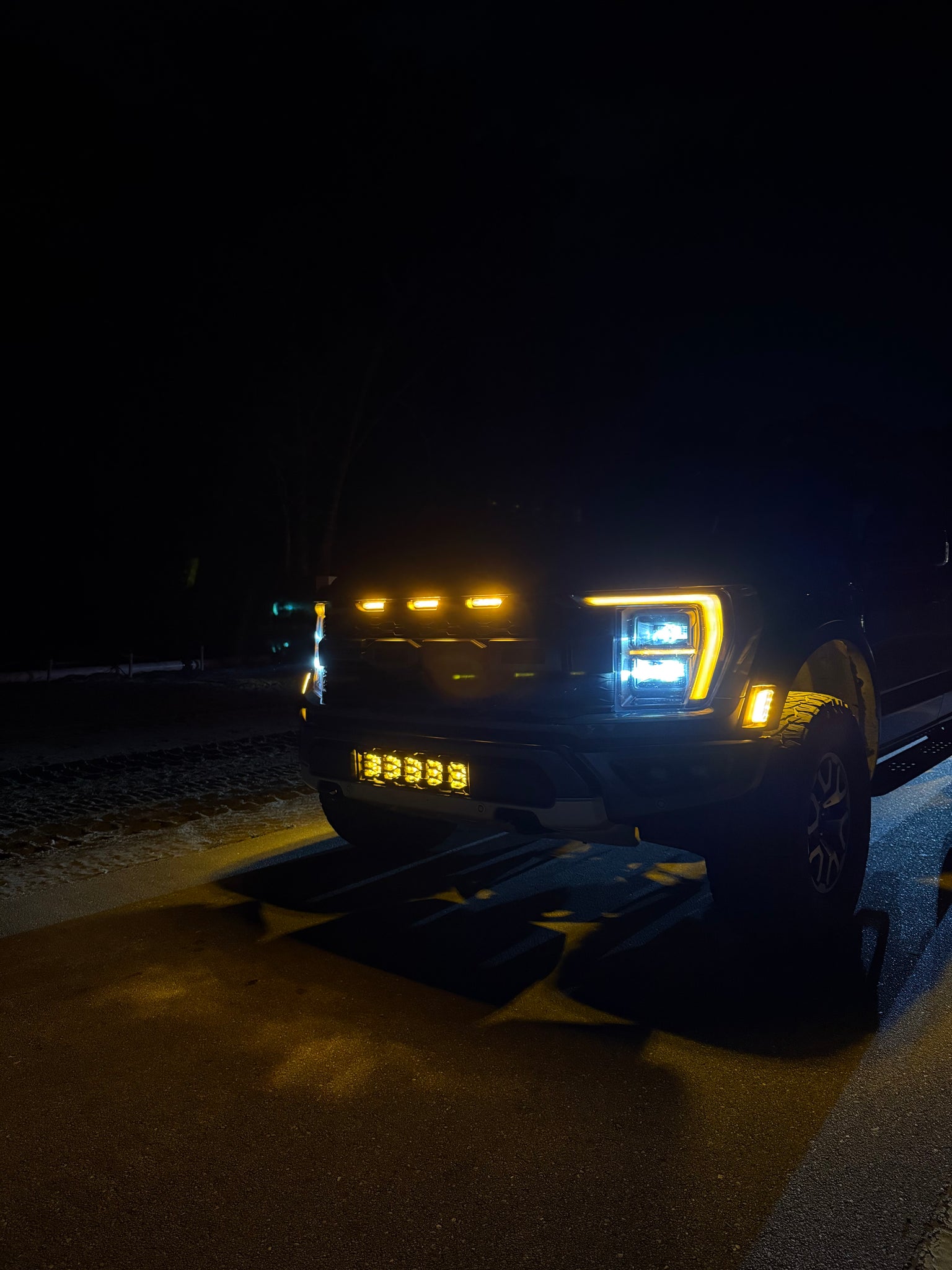

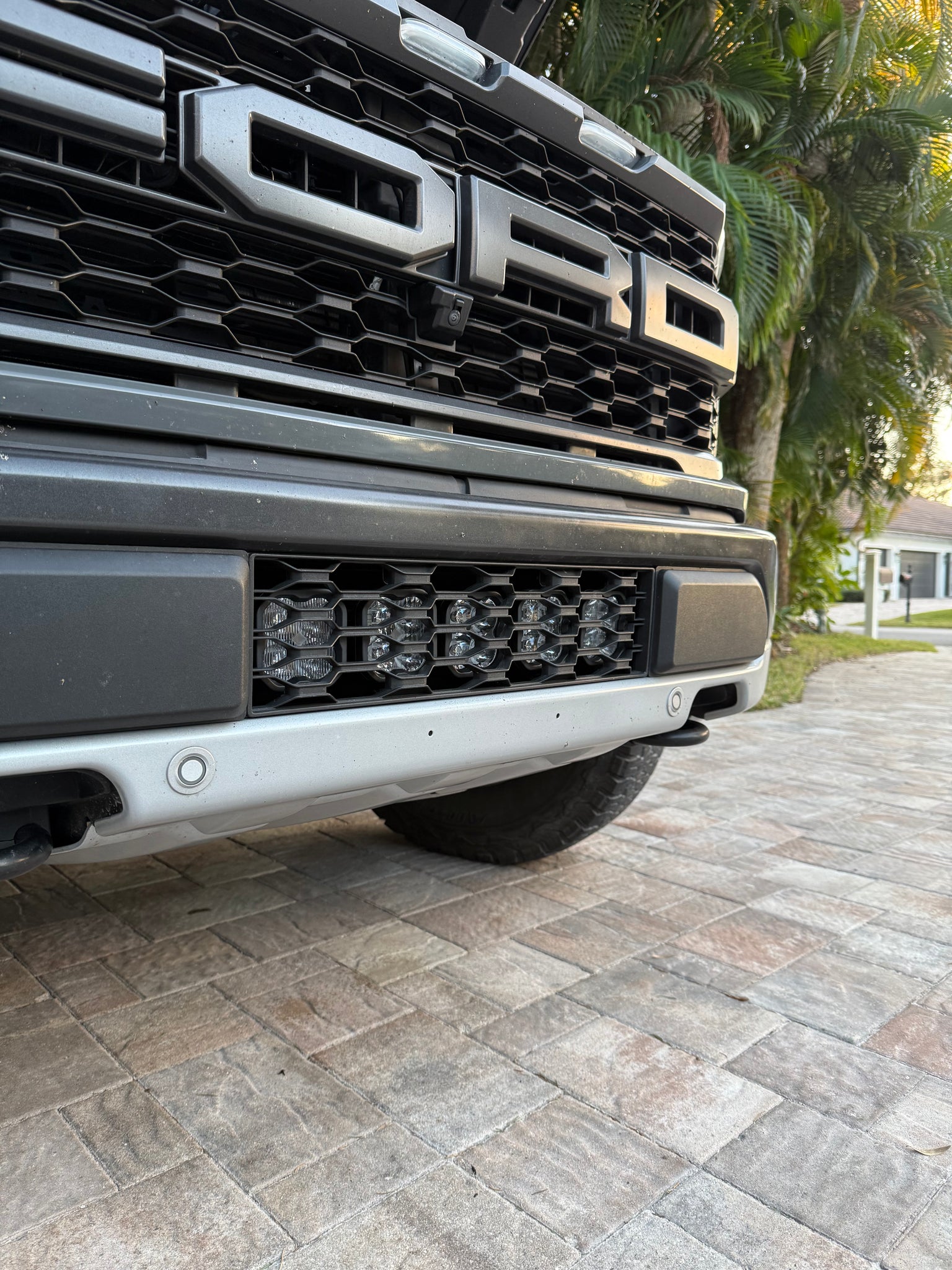

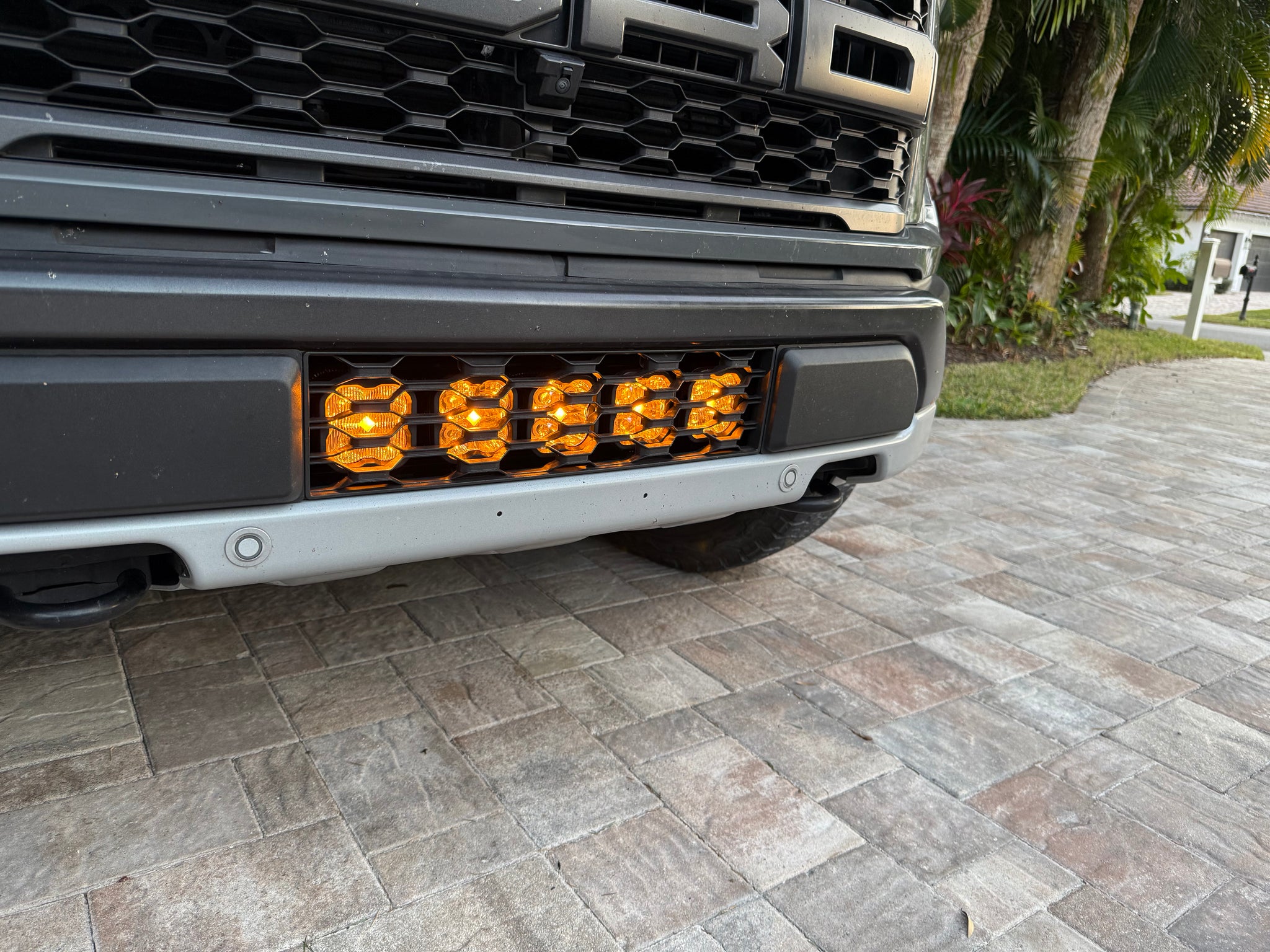

5 Lights- Get the most visibility and light spread with the 5 light option. Filling up the entire opening, 5 lights gives you a complete look with five pods situated cleanly tucked inside the entire length of the center bumper opening. This is the most visually appealing and offers the most functionality with 3 different beam patterns. A wide fog beam is used for the outer pair to illuminate the road side and highway shoulders as well as to disperse light directly in front of the truck. The center pair features Diodes’ driving beam designed to extended your low beam visibility. The fifth center light is a spot beam pattern to broadcast more light further down the road or trail where your high beams start to fade away.
Five Lights-Sport/Pro-Yellow:
- 1 x SS3 SAE/DOT Fog Yellow Sport/Pro (pair)
- 1 x SS3 SAE/DOT Driving Yellow Sport/Pro (pair)
- 1 xSS3 Spot Yellow Sport/Pro (single)
- 1 x Heavy Duty Dual Output 4- Pin Harness
- 1 x Heavy Duty Single Output 4-Pin Harness
- 2 x Y-Splitters
Five Lights-Sport/Pro-White
- 1 x SS3 SAE/DOT Fog White Sport/Pro (pair)
- 1 x SS3 SAE/DOT Driving White Sport/Pro (pair)
- 1 xSS3 Spot White Sport/Pro (single)
- 1 x Heavy Duty Dual Output 4- Pin Harness
- 1 x Heavy Duty Single Output 4-Pin Harness
- 2 x Y-Splitters

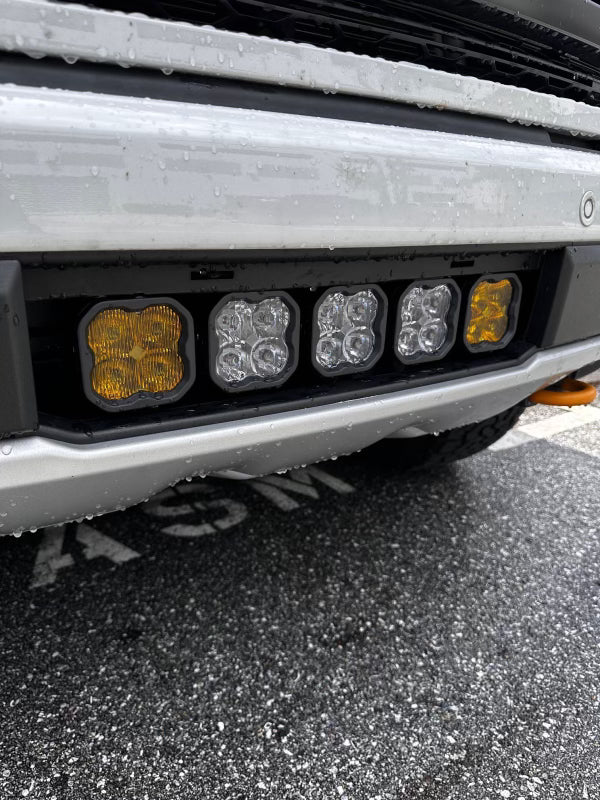

Five Lights-Sport/Pro-Combo:
- 1 x SS3 SAE/DOT Fog Yellow Sport/Pro (pair)
- 1 x SS3 SAE/DOT Driving White Sport/Pro (pair)
- 1 xSS3 Spot Yellow White Sport/Pro (single)
- 1 x Heavy Duty Dual Output 4- Pin Harness
- 1 x Heavy Duty Single Output 4-Pin Harness
- 2 x Y-Splitters
Specifications
● Material: heavy-duty laser cut 3/16" steel for maximum durability.
● Finish: multi stage powder-coated for resistance to rust and corrosion.
● Fitment:
- 2021-2024 Ford Raptor with non modular bumper
**** will not fit Modular Bumpers found on some 2024 Raptors ****
Install Instructions:
